Texas Instruments
ADS58C20IPFP
ADS58C20IPFP
Regular price
$66.04 USD
Regular price
Sale price
$66.04 USD
Unit price
per
Couldn't load pickup availability
ADS58C20IPFP Texas Instruments - Yeehing Electronics
Dual Channel IF BTS Receiver with Signal Processing for multi-mode 3G+LTE+GSM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 125.482 |
| 100 — 249 | 121.708 |
| 250 — 999 | 101.329 |
| 1,000 + | 66.04 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Receiver |
| RoHS | Y |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |

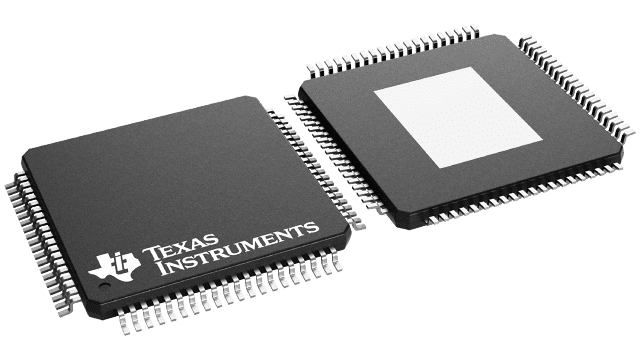

| Package / Case | HTQFP-80 |
| Mounting Style | SMD/SMT |
| Packaging | Tray |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | ADS58C20 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | RF Receiver |
| Factory Pack Quantity | 96 |
| Subcategory | Wireless & RF Integrated Circuits |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| ADS58C20IPFP Datasheet |
More Information
The ADS58C20 and ADS58C23 are dual IF receivers for wideband, multi-mode cellular infrastructure base stations. Each channel provides high dynamic performance up to 125 MHz of bandwidth, with optimized bands of 40- and 75-MHz. The IF receiver architecture eases front end filter design for wide bandwidth receivers. The receivers have integrated buffers at the analog inputs with benefits of uniform performance and input impedance across a wide frequency range.
