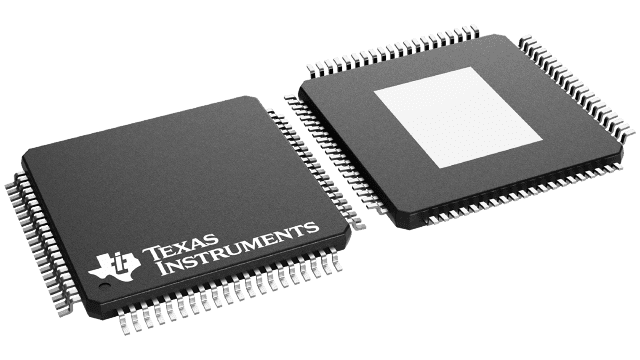

ADS58C23IPFP Texas Instruments - Yeehing Electronics

Dual Channel IF BTS Receiver with Signal Processing for multi-mode 3G+LTE

Pricing (USD)

Quantity	Unit Price
1 — 99	105.011
100 — 249	101.853
250 — 999	84.799
1,000 +	55.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Receiver
RoHS	Y
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Package / Case	HTQFP-80
Mounting Style	SMD/SMT
Packaging	Tray
Operating Temperature Range	- 40 C to + 85 C
Series	ADS58C23
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	RF Receiver
Factory Pack Quantity	96
Subcategory	Wireless & RF Integrated Circuits
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V
Unit Weight	0.013355 oz

For more information, please refer to datasheet

Documents

ADS58C23IPFP Datasheet

More Information

The ADS58C20 and ADS58C23 are dual IF receivers for wideband, multi-mode cellular infrastructure base stations. Each channel provides high dynamic performance up to 125 MHz of bandwidth, with optimized bands of 40- and 75-MHz. The IF receiver architecture eases front end filter design for wide bandwidth receivers. The receivers have integrated buffers at the analog inputs with benefits of uniform performance and input impedance across a wide frequency range.
