Texas Instruments

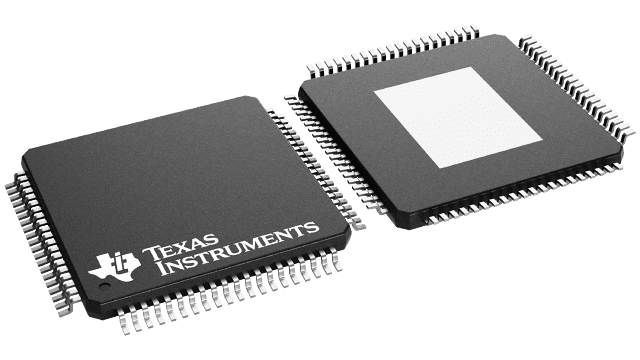

ADS58C48IPFPR
ADS58C48IPFPR
Regular price
$75.86 USD
Regular price
Sale price
$75.86 USD
Unit price
per
Couldn't load pickup availability
ADS58C48IPFPR Texas Instruments - Yeehing Electronics
Quad-Channel, 11-Bit, 200-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 125.707 |
| 100 — 249 | 113.786 |
| 250 — 999 | 110.535 |
| 1,000 + | 75.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS58C48 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 11 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 200 MS/s |
| Architecture | Pipeline |
| Analog Supply Voltage | 1.8 V |
| Digital Supply Voltage | 1.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Power Consumption | 900 mW |
| Brand | Texas Instruments |
| Development Kit | ADS58C48EVM |
| DNL - Differential Nonlinearity | +/- 1.2 LSB |
| ENOB - Effective Number of Bits | 10.7 Bit |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 84 dB |
| SINAD - Signal to Noise and Distortion Ratio | 66.6 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| ADS58C48IPFPR Datasheet |
More Information
The ADS58C48 is a quad channel 11-bit A/D converter with sampling rate up to 200 MSPS. It uses innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8V supply. This makes it well-suited for multi-carrier, wide band-width communications applications.
