ADS58H40IZCR Texas Instruments - Yeehing Electronics

Quad-Channel, 14-Bit, 250-MSPS Receiver and Feedback IC

Pricing (USD)

Quantity	Unit Price
1 — 99	215.654
100 — 249	195.204
250 — 999	189.627
1,000 +	130.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS58H40
Mounting Style	SMD/SMT

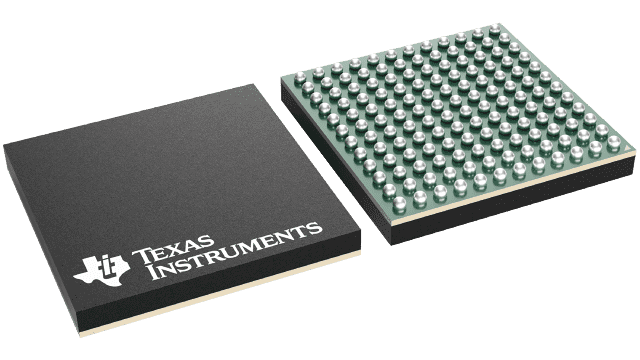

Package / Case	NFBGA-144
Resolution	14 bit
Number of Channels	4 Channel
Sampling Rate	250 MS/s
Interface Type	Parallel
Architecture	Pipeline
Analog Supply Voltage	1.9 V, 3.3 V
Digital Supply Voltage	1.8 V
SNR - Signal to Noise Ratio	71 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tray
Features	Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power
Output Type	LVDS
Power Consumption	1.46 W
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of ADC Inputs	4 Input
Operating Supply Voltage	1.8 V to 3.45 V
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	85 dB
Factory Pack Quantity	184
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADS58H40IZCR Datasheet

More Information

The ADS58H40 is a high-linearity, quad-channel, 14-bit, 250-MSPS analog-to-digital converter (ADC). The four ADC channels are separated into two blocks with two ADCs each. Each block can be individually configured into three different operating modes. One operating mode includes the implementation of the SNRBoost3G+ signal processing technology to provide high signal-to-noise ratio (SNR) in a band up to 90 MHz wide with only 11-bit resolution. Designed for low power consumption and high spurious-free dynamic range (SFDR), the ADC has low-noise performance and outstanding SFDR over a large input frequency range.
