Texas Instruments

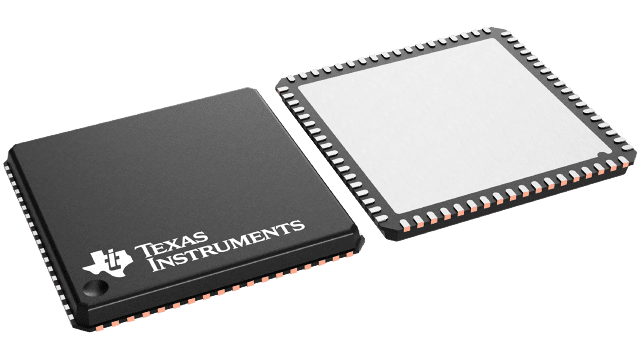

ADS58J63IRMPT
ADS58J63IRMPT
Couldn't load pickup availability
ADS58J63IRMPT Texas Instruments - Yeehing Electronics
Quad Channel 14-bit 500 Msps Telecom Receiver IC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 552.531 |
| 100 — 249 | 500.136 |
| 250 — 999 | 485.846 |
| 1,000 + | 381.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | ADS58J63 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-72 |
| Packaging | Reel |
| Features | Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power |
| Height | 0.9 mm |
| Length | 10.1 mm |
| Power Consumption | 2.7 W |
| Width | 10.1 mm |
| Brand | Texas Instruments |
| Analog Supply Voltage | 1.8 V to 2.0 V |
| Digital Supply Voltage | 1.8 V to 2 V |
| Moisture Sensitive | Yes |
| Product Type | Analog Front End - AFE |
| SFDR - Spurious Free Dynamic Range | 89 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS58J63IRMPT Datasheet |
More Information
The ADS58J63 is a low-power, wide-bandwidth, 14-bit, 500-MSPS, quad-channel, telecom receiver device. The ADS58J63 supports a JESD204B serial interface with data rates up to 10 Gbps with one lane per channel. The buffered analog input provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy. The ADS58J63 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption. The digital signal processing block includes complex mixers followed by low-pass filters with decimate-by-2 and -4 options supporting up to 200-MHz receive bandwidth. The ADS58J63 also supports a 14-bit, 500-MSPS output in burst-mode making the device suitable for a DPD observation receiver.
