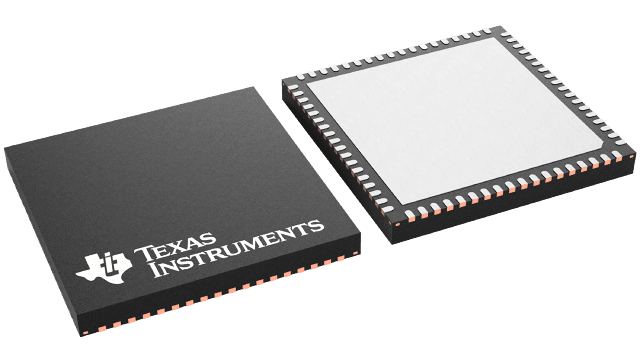

ADS58J64IRRHT Texas Instruments - Yeehing Electronics
Quad-channel, 14-bit, 1-GSPS telecom receiver and feedback IC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 552.531 |
| 100 — 249 | 500.136 |
| 250 — 999 | 485.846 |
| 1,000 + | 333.42 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ADS58J64IRRHT Datasheet |
More Information
The ADS58J64 is a low-power, wide-bandwidth, 14-bit, 1-GSPS, quad-channel, telecom receiver device. The ADS58J64 supports a JESD204B serial interface with data rates up to 10 Gbps with one lane per channel. The buffered analog input provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy. The ADS58J64 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption. The digital signal processing block includes complex mixers followed by low-pass filters with decimate-by-2 and -4 options supporting up to a 200-MHz receive bandwidth. The ADS58J64 also supports a 14-bit, 500-MSPS output in burst mode, making the device suitable for a digital pre-distortion (DPD) observation receiver.
