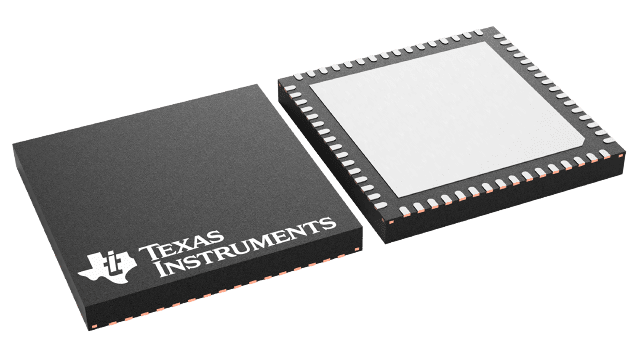

ADS6424IRGCT Texas Instruments - Yeehing Electronics

Quad-Channel, 12-Bit, 105-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	85.422
100 — 249	82.853
250 — 999	68.98
1,000 +	44.96

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS6424IRGCT Datasheet

More Information

The ADS6424/ADS6423/ADS6422 (ADS642X) is a family of high performance 12-bit 105/80/65 MSPS quad channel A-D converters. Serial LVDS data outputs reduce the number of interface lines, resulting in a compact 64-pin QFN package (9 mm × 9 mm) that allows for high system integration density. The device includes 3.5dB coarse gain option that can be used to improve SFDR performance with little degradation in SNR. In addition to the coarse gain, fine gain options also exist, programmable in 1dB steps up to 6dB.
