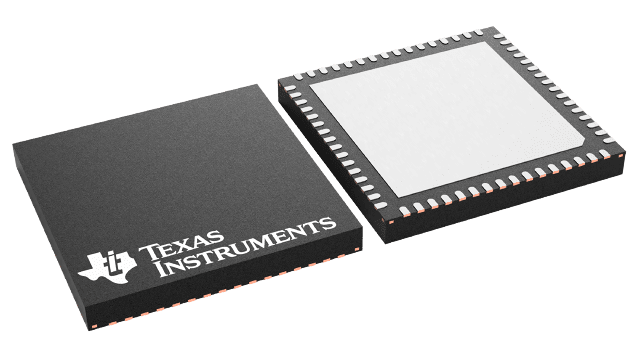

ADS6444IRGCT Texas Instruments - Yeehing Electronics

Quad-Channel, 14-Bit, 105-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	124.527
100 — 249	112.719
250 — 999	109.498
1,000 +	75.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS6444
Mounting Style	SMD/SMT
Package / Case	VQFN-64
Resolution	14 bit
Number of Channels	4 Channel
Sampling Rate	105 MS/s
Input Type	Differential
Interface Type	I2C
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	3.3 V
Digital Supply Voltage	3 V to 3.6 V
SNR - Signal to Noise Ratio	73.8 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	High Performance
Height	0.88 mm
Length	9 mm
Number of Converters	4 Converter
Output Type	LVDS
Power Consumption	1.35 W
Width	9 mm
Brand	Texas Instruments
Development Kit	ADS6444EVM
DNL - Differential Nonlinearity	+/- 2.5 LSB
ENOB - Effective Number of Bits	11.7 Bit
INL - Integral Nonlinearity	- 0.5 /5 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 3.6 V
Pd - Power Dissipation	1.5 W
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	81 dB
SINAD - Signal to Noise and Distortion Ratio	72 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.008021 oz

For more information, please refer to datasheet

Documents

ADS6444IRGCT Datasheet

More Information

The ADS6445/ADS6444/ADS6443/ADS6442 (ADS644X) is a family of high performance 14-bit 125/105/80/65 MSPS quad channel A-D converters. Serial LVDS data outputs reduce the number of interface lines, resulting in a compact 64-pin QFN package (9 mm × 9 mm) that allows for high system integration density. The device includes 3.5dB coarse gain option that can be used to improve SFDR performance with little degradation in SNR. In addition to the coarse gain, fine gain options also exist, programmable in 1dB steps up to 6dB.
