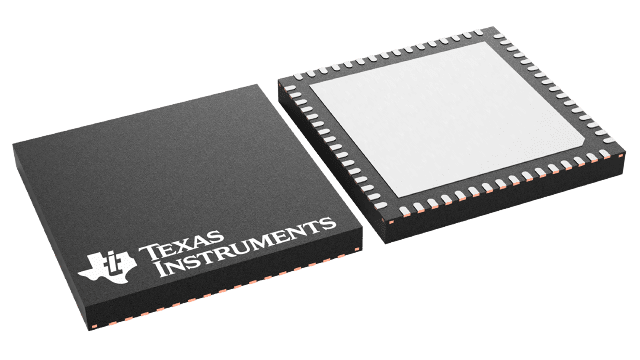

ADS6445MRGCTEP Texas Instruments - Yeehing Electronics

Quad-Channel, 14-Bit, 125-MSPS Analog-to-Digital Converter (ADC) - Enhanced-Product

Pricing (USD)

Quantity	Unit Price
1 — 99	186.286
100 — 249	168.621
250 — 999	163.803
1,000 +	112.41

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS6445MRGCTEP Datasheet

More Information

The ADS6445/ADS6444 is a high performance 14 bit 125/105 MSPS quad channel A-D converter. Serial LVDS data outputs reduce the number of interface lines, resulting in a compact 64-pin QFN package (9 mm × 9 mm) that allows for high system integration density. The device includes 3.5 dB coarse gain option that can be used to improve SFDR performance with little degradation in SNR. In addition to the coarse gain, fine gain options also exist, programmable in 1 dB steps up to 6 dB.
