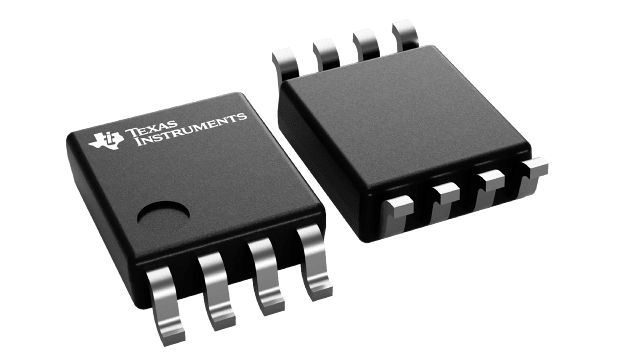

ADS7042IDCUT Texas Instruments - Yeehing Electronics
12-Bit 1MSPS Ultra-Low-Power Ultra-Small-Size SAR ADC With SPI Interface
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.307 |
100 — 249 | 1.881 |
250 — 999 | 1.478 |
1,000 + | 0.88 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS7042 |
Mounting Style | SMD/SMT |
Package / Case | VSSOP-8 |
Resolution | 12 bit |
Number of Channels | 1 Channel |
Sampling Rate | 1 MS/s |
Input Type | Single-Ended |
Interface Type | SPI |
Architecture | SAR |
Analog Supply Voltage | 1.65 V to 3.6 V |
Digital Supply Voltage | 1.65 V to 3.6 V |
SNR - Signal to Noise Ratio | 70 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Features | Small Size |
Number of Converters | 1 Converter |
Power Consumption | 0.234 mW |
Type | ADC |
Brand | Texas Instruments |
Operating Supply Voltage | 3 V |
Pd - Power Dissipation | 0.69 mW |
Product Type | ADCs - Analog to Digital Converters |
SINAD - Signal to Noise and Distortion Ratio | 69.5 dB |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Unit Weight | 0.001058 oz |
For more information, please refer to datasheet
Documents
ADS7042IDCUT Datasheet |
More Information
The ADS7042 is a 12-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7042 complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V).
