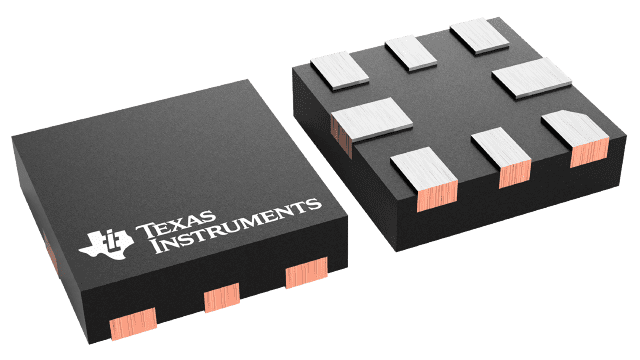

ADS7042IRUGR


YeeHing #: Y004-ADS7042IRUGR
Inventory: 67600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS7042IRUGR Texas Instruments - Yeehing Electronics

12-Bit 1MSPS Ultra-Low-Power Ultra-Small-Size SAR ADC With SPI Interface

Pricing (USD)

Quantity Unit Price
1 — 99 1.923
100 — 249 1.568
250 — 999 1.232
1,000 + 0.62

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS7042
Mounting Style SMD/SMT
Package / Case X2QFN-10
Resolution 12 bit
Number of Channels 1 Channel
Input Type Single-Ended
Interface Type SPI
Architecture SAR
Reference Type Supply
Analog Supply Voltage 1.65 V to 3.6 V
Digital Supply Voltage 1.65 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Reel
Features Small Size
Number of Converters 1 Converter
Power Consumption 0.234 mW
Type Data Acquisition
Brand Texas Instruments
Shutdown Shutdown
Product Type ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio 69.5 dB
Factory Pack Quantity 3000
Subcategory Data Converter ICs
Unit Weight 0.000088 oz

For more information, please refer to datasheet

Documents

ADS7042IRUGR Datasheet

More Information

The ADS7042 is a 12-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7042 complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V).
