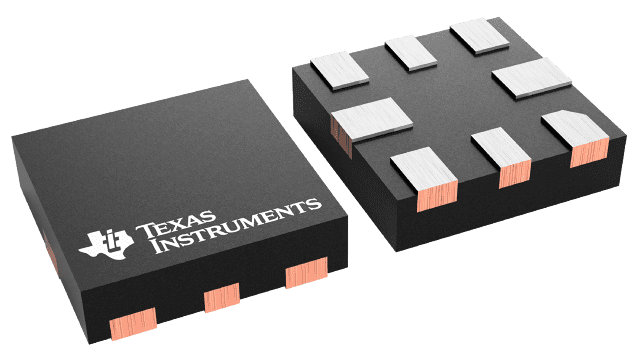

ADS7043IRUGR Texas Instruments - Yeehing Electronics
Ultra-Low-Power Ultra-Small-Size SAR ADC | 12 Bit | 1MSPS | Pseudo Differential
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.923 |
100 — 249 | 1.568 |
250 — 999 | 1.232 |
1,000 + | 0.73 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 3,000 |
Package | Pins | X2QFN (RUG) | 8 |
For more information, please refer to datasheet
Documents
ADS7043IRUGR Datasheet |
More Information
The ADS7043 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±0.825 V to ±1.8 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The device complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V).
