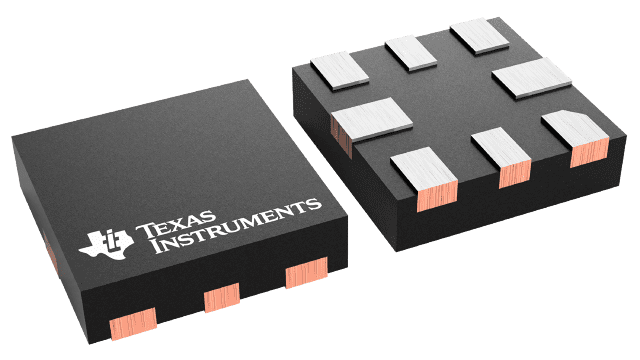

ADS7044IRUGR Texas Instruments - Yeehing Electronics

Ultra-Low-Power Ultra-Small-Size SAR ADC | 12 Bit | 1MSPS | Fully Differential

Pricing (USD)

Quantity	Unit Price
1 — 99	1.923
100 — 249	1.568
250 — 999	1.232
1,000 +	0.73

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS7044
Mounting Style	SMD/SMT
Package / Case	X2QFN-8
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	1 MS/s
Input Type	Differential
Interface Type	SPI
Architecture	SAR
Analog Supply Voltage	1.65 V to 3.6 V
Digital Supply Voltage	1.65 V to 3.6 V
SNR - Signal to Noise Ratio	71 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Small Size
Power Consumption	0.261 mW
Brand	Texas Instruments
Operating Supply Voltage	1.8 V to 3.6 V
Product Type	ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio	71 dB
Factory Pack Quantity	3000
Subcategory	Data Converter ICs
Unit Weight	0.000208 oz

For more information, please refer to datasheet

Documents

ADS7044IRUGR Datasheet

More Information

The ADS7044 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±1.65 V to ±3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The device complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V).
