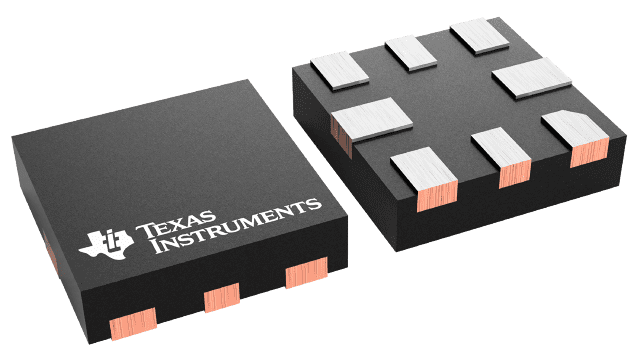

ADS7046IRUGR Texas Instruments - Yeehing Electronics

12-Bit, 3MSPS, Single-Ended Input, Small-Size Low-Power SAR ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	3.0
100 — 249	2.628
250 — 999	1.843
1,000 +	1.04

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS7046
Mounting Style	SMD/SMT
Package / Case	X2QFN-8
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	3 MS/s
Input Type	Single-Ended
Interface Type	SPI
Architecture	SAR
Reference Type	Supply
Analog Supply Voltage	2.35 V to 3.6 V
Digital Supply Voltage	1.65 V to 3.6 V
SNR - Signal to Noise Ratio	71.2 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Small Size
Number of Converters	1 Converter
Output Type	Serial Data
Power Consumption	3.8 mW
Type	High Speed
Brand	Texas Instruments
Shutdown	No Shutdown
Development Kit	ADS7057EVM-PDK
DNL - Differential Nonlinearity	0.15 LSB
FPBW - Full Power Bandwidth	200 MHz
Gain Error	0.01 %FS
INL - Integral Nonlinearity	0.3 LSB
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	2.35 V to 3.6 V
SFDR - Spurious Free Dynamic Range	90 dB
SINAD - Signal to Noise and Distortion Ratio	71.1 dB
Factory Pack Quantity	3000
Subcategory	Data Converter ICs
THD - Total Harmonic Distortion	- 86 dB
Unit Weight	0.000088 oz

For more information, please refer to datasheet

Documents

ADS7046IRUGR Datasheet

More Information

The ADS7046 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).
