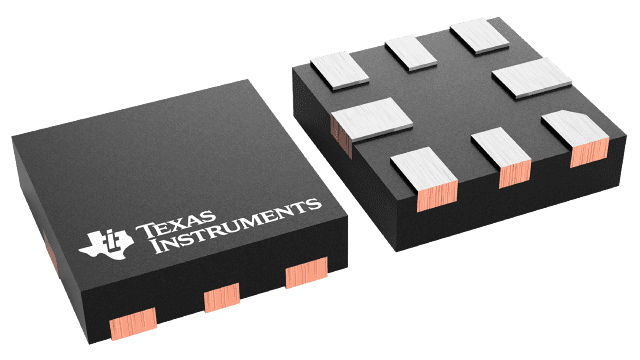

ADS7047IRUGR Texas Instruments - Yeehing Electronics
12-Bit, 3MSPS, Differential Input, Small-Size Low-Power SAR ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.333 |
| 100 — 249 | 2.921 |
| 250 — 999 | 2.048 |
| 1,000 + | 1.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS7046 |
| Mounting Style | SMD/SMT |
| Package / Case | X2QFN-8 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 3 MS/s |
| Input Type | Differential |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | Supply |
| Analog Supply Voltage | 2.35 V to 3.6 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| SNR - Signal to Noise Ratio | 72.9 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Small Size |
| Number of Converters | 1 Converter |
| Power Consumption | 4 mW |
| Type | Low Power SAR ADC |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| DNL - Differential Nonlinearity | 0.15 LSB |
| ENOB - Effective Number of Bits | 11.8 bit |
| FPBW - Full Power Bandwidth | 200 MHz |
| Gain Error | 0.01 %FS |
| INL - Integral Nonlinearity | 0.2 LSB |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 95 dB |
| SINAD - Signal to Noise and Distortion Ratio | 72.8 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
| THD - Total Harmonic Distortion | - 90 dB |
| Unit Weight | 0.000088 oz |
For more information, please refer to datasheet
Documents
| ADS7047IRUGR Datasheet |
More Information
The ADS7047 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).
