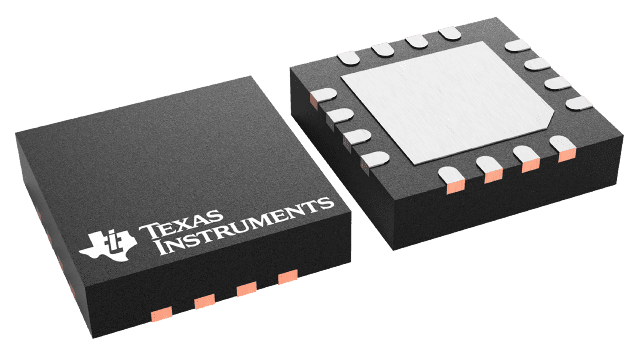

ADS7230IRSAT Texas Instruments - Yeehing Electronics
Low-power, 12-bit, 2-channel, 1-MHz, single/dual unipolar input, ADCs with serial interface
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.578 |
100 — 249 | 5.363 |
250 — 999 | 4.215 |
1,000 + | 2.86 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS7230 |
Mounting Style | SMD/SMT |
Package / Case | QFN-16 |
Resolution | 12 bit |
Number of Channels | 2 Channel |
Sampling Rate | 1 MS/s |
Input Type | Single-Ended |
Interface Type | SPI |
Architecture | SAR |
Reference Type | External |
Analog Supply Voltage | 2.7 V to 5.5 V |
Digital Supply Voltage | 1.65 V to 5.5 V |
SNR - Signal to Noise Ratio | 73.9 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Daisy-Chainable, Oscillator |
Height | 0.9 mm |
Length | 4 mm |
Number of Converters | 1 Converter |
Power Consumption | 13.7 mW |
Width | 4 mm |
Brand | Texas Instruments |
DNL - Differential Nonlinearity | +/- 0.5 LSB |
INL - Integral Nonlinearity | +/- 0.5 LSB |
Moisture Sensitive | Yes |
Operating Supply Voltage | 1.65 V to 5.5 V, 4.5 V to 5.5 V |
Pd - Power Dissipation | 38.6 mW |
Product Type | ADCs - Analog to Digital Converters |
SINAD - Signal to Noise and Distortion Ratio | 73.7 dB |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
ADS7230IRSAT Datasheet |
More Information
The ADS7229 is a low-power, 12-bit, 1MSPS analog-to-digital converter (ADC) with a unipolar input. The device includes a 12-bit capacitor-based successive approximation register (SAR) ADC with inherent sample-and-hold.
