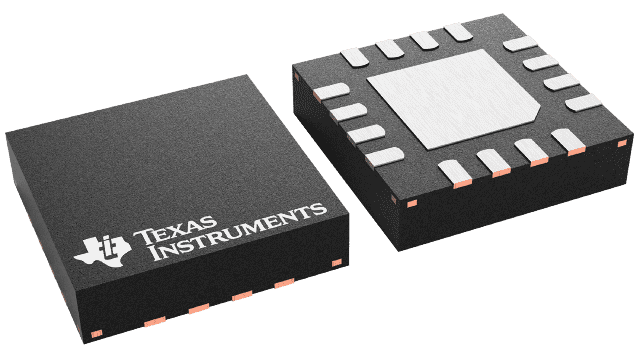

ADS7846IRGVT Texas Instruments - Yeehing Electronics

4-wire Touch Screen Controller

Pricing (USD)

Quantity	Unit Price
1 — 99	3.81
100 — 249	3.338
250 — 999	2.341
1,000 +	1.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Touch Screen Controllers
RoHS	Y
Series	ADS7846
Type	Resistive Touch Controller
Input Type	1 TSC
Sampling Rate	125 kS/s
Resolution	12 bit
Interface Type	Serial, 3-Wire, SPI
Supply Voltage - Max	5.25 V
Supply Voltage - Min	2.2 V
Operating Supply Current	280 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	2.2 V to 5.25 V
Product Type	Touch Screen Controllers
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.001464 oz

For more information, please refer to datasheet

Documents

ADS7846IRGVT Datasheet

More Information

The ADS7846 is a next-generation version to the industry standard ADS7843 4-wire touch screen controller. The ADS7846 is 100% pin-compatible with the existing ADS7843, and drops into the same socket. This allows for easy upgrade of current applications to the new version. Only software changes are required to take advantage of the added features of direct battery measurement, temperature measurement, and touch-pressure measurement. The ADS7846 also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to 2.7V supply voltage while monitoring the battery voltage from 0V to 6V.
