ADS7862YB/250 Texas Instruments - Yeehing Electronics

Dual 500kHz, 12-Bit, 2+2 Ch Simultaneous Sampling Analog-To-Digital Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	12.599
100 — 249	11.006
250 — 999	8.486
1,000 +	6.07

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS7862
Mounting Style	SMD/SMT

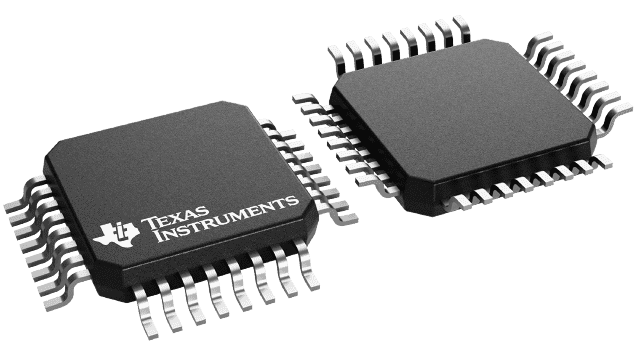

Package / Case	TQFP-32
Resolution	12 bit
Number of Channels	4 Channel
Sampling Rate	500 kS/s
Input Type	Differential
Interface Type	Parallel
Architecture	SAR
Reference Type	External, Internal
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	4.75 V to 5.25 V
SNR - Signal to Noise Ratio	71 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Internal Reference, Simultaneous Sampling
Height	1 mm
Length	5 mm
Number of Converters	2 Converter
Power Consumption	25 mW
Width	5 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1 LSB
INL - Integral Nonlinearity	+/- 1 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Pd - Power Dissipation	40 mW
Product Type	ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio	70 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.002568 oz

For more information, please refer to datasheet

Documents

ADS7862YB/250 Datasheet

More Information

The ADS7862 is a dual 12-bit, 500kHz analog-to-digital converter (A/D) with 4 fully differential input channels grouped into two pairs for high speed simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differential to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz, which is important in high noise environments.
