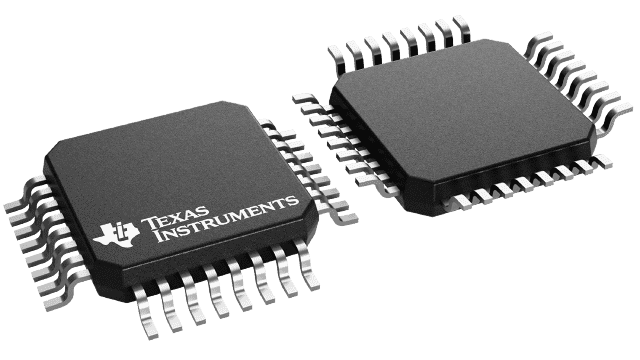

ADS7865IPBS Texas Instruments - Yeehing Electronics

Dual, 2MSPS, 12-Bit, 3+3 or 2+2 Channel, Simultaneous Sampling ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	9.86
100 — 249	8.613
250 — 999	6.641
1,000 +	4.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS7865
Mounting Style	SMD/SMT
Package / Case	TQFP-32
Resolution	12 bit
Number of Channels	4 Channel/6 Channel
Sampling Rate	2 MS/s
Input Type	Differential/Pseudo-Differential
Interface Type	Parallel
Architecture	SAR
Reference Type	External, Internal
Analog Supply Voltage	2.7 V to 5.5 V
Digital Supply Voltage	2.7 V to 5.5 V
SNR - Signal to Noise Ratio	71.7 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Tray
Features	Internal Reference, Simultaneous Sampling
Height	1 mm
Length	5 mm
Number of Converters	2 Converter
Power Consumption	30 mW
Width	5 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1 LSB
INL - Integral Nonlinearity	+/- 1.25 LSB
Moisture Sensitive	Yes
Operating Supply Voltage	5 V
Pd - Power Dissipation	44 mW
Product Type	ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio	71.3 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.002568 oz

For more information, please refer to datasheet

Documents

ADS7865IPBS Datasheet

More Information

The ADS7865 is a dual, 12-bit, 2MSPS analog-to-digital converter (ADC) with four fully differential or six pseudo-differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold (S/H) amplifiers are fully differential and are maintained differentially to the input of the ADC. This architecture provides excellent common-mode rejection of 72dB at 100kHz, which is a critical performance characteristic in noisy environments.
