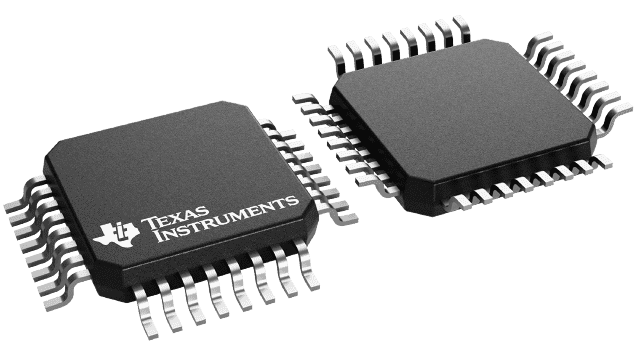

Dual, 2MSPS, 12-Bit, 3+3 or 2+2 Channel, Simultaneous Sampling ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.108 |
| 100 — 249 | 7.425 |
| 250 — 999 | 5.836 |
| 1,000 + | 3.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS7865 |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-32 |
| Resolution | 12 bit |
| Number of Channels | 4 Channel/6 Channel |
| Sampling Rate | 2 MS/s |
| Input Type | Differential/Pseudo-Differential |
| Interface Type | Parallel |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 71.7 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Internal Reference, Simultaneous Sampling |
| Height | 1 mm |
| Length | 5 mm |
| Number of Converters | 2 Converter |
| Power Consumption | 30 mW |
| Width | 5 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1.25 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 44 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 71.3 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.002575 oz |
For more information, please refer to datasheet
Documents
| ADS7865IPBSR Datasheet |
More Information
The ADS7865 is a dual, 12-bit, 2MSPS analog-to-digital converter (ADC) with four fully differential or six pseudo-differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold (S/H) amplifiers are fully differential and are maintained differentially to the input of the ADC. This architecture provides excellent common-mode rejection of 72dB at 100kHz, which is a critical performance characteristic in noisy environments.
