Texas Instruments
ADS7869IPZTR
ADS7869IPZTR
Regular price
$10.78 USD
Regular price
Sale price
$10.78 USD
Unit price
per
Couldn't load pickup availability

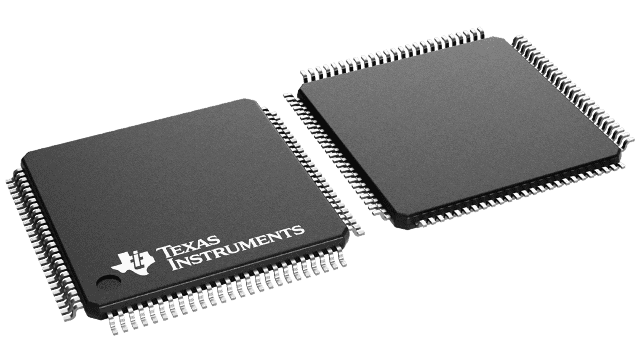

ADS7869IPZTR Texas Instruments - Yeehing Electronics
12-Ch 7 Simultaneous Sampling, Analog Motor Control Front End w/3 1MSPS, 12-Bit ADCs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.562 |
| 100 — 249 | 20.944 |
| 250 — 999 | 17.217 |
| 1,000 + | 10.78 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Data Acquisition ADCs/DACs - Specialized |
| RoHS | Y |
| Series | ADS7869 |
| Type | Analog Motor Control Front End |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-100 |
| Packaging | Reel |
| Features | Internal reference |
| Power Consumption | 250 mW |
| Brand | Texas Instruments |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 45 mA |
| Pd - Power Dissipation | 250 mW |
| Product Type | Data Acquisition ADCs/DACs - Specialized |
| SINAD - Signal to Noise and Distortion Ratio | 70 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.023175 oz |
For more information, please refer to datasheet
Documents
| ADS7869IPZTR Datasheet |
More Information
The ADS7869 is a motor-control front-end that includes three analog-to-digital converters (ADCs) with a total of seven sample-and-hold capacitors and 12 fully differential input channels. There are four sign comparators connected to four input channels. There are also three additional fully differential inputs; each input is connected to a window comparator and a sign comparator.
