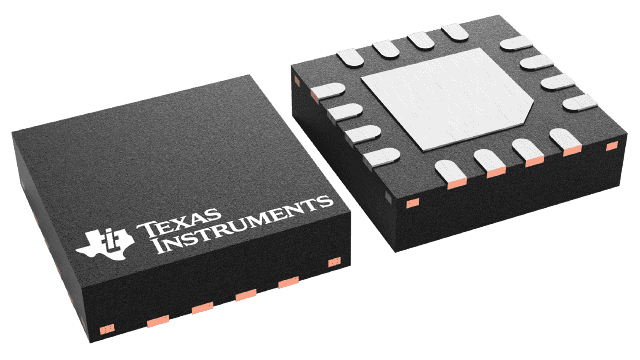

ADS7946SRTER Texas Instruments - Yeehing Electronics

14-Bit, 2MSPS, Dual-Channel, Unipolar, Pseudo-Differential, u-Power SAR ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	7.084
100 — 249	5.775
250 — 999	4.539
1,000 +	2.69

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS7946
Mounting Style	SMD/SMT
Package / Case	WQFN-16
Resolution	14 bit
Number of Channels	2 Channel
Sampling Rate	2 MS/s
Input Type	Single-Ended
Interface Type	SPI
Architecture	SAR
Reference Type	External
Analog Supply Voltage	2.7 V to 5.25 V
Digital Supply Voltage	1.65 V to 5.25 V
SNR - Signal to Noise Ratio	82 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Small Size
Number of Converters	1 Converter
Power Consumption	10.5 mW
Brand	Texas Instruments
Development Kit	ADS7946EVM-PDK
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 5.5 V
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	2.5 V
SINAD - Signal to Noise and Distortion Ratio	78.8 dB
Factory Pack Quantity	3000
Subcategory	Data Converter ICs
Unit Weight	0.000709 oz

For more information, please refer to datasheet

Documents

ADS7946SRTER Datasheet

More Information

The ADS7945/6 are 14-bit, 2 MSPS analog-to-digital converters (ADCs), with differential and single-ended inputs, respectively. The devices operate at a 2 MSPS sample rate with a standard 16-clock data frame. The devices feature both outstanding dc precision and excellent dynamic performance; the ADS7946 is pin-compatible with the 8/10/12-bit ADS7947/8/9 devices. The devices include a two-channel input multiplexer and a low-power successive approximation register (SAR) ADC with an inherent sample-and-hold (S/H) input stage.
