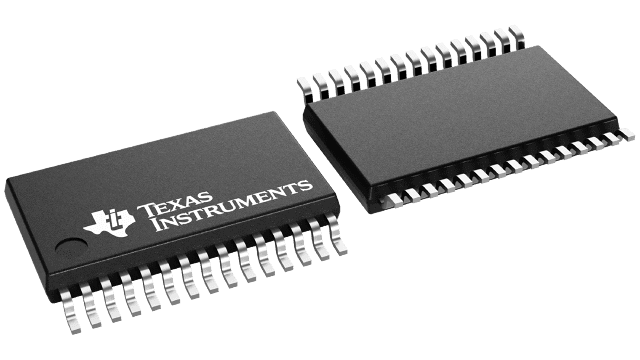

ADS7954SDBTR Texas Instruments - Yeehing Electronics
10 bit, 1 MSPS, 4 Ch, Single Ended, Micro Power, sr i/f, SAR ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.34 |
| 100 — 249 | 2.723 |
| 250 — 999 | 2.14 |
| 1,000 + | 1.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS7954 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-30 |
| Resolution | 10 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 1 MS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Digital Supply Voltage | 1.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 60 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Height | 1.15 mm |
| Length | 7.8 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 11.5 mW |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| INL - Integral Nonlinearity | +/- 0.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.25 V |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.51 V |
| SINAD - Signal to Noise and Distortion Ratio | 60 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.003439 oz |
For more information, please refer to datasheet
Documents
| ADS7954SDBTR Datasheet |
More Information
The ADS79xx is a 12-, 10-, 8-bit pin compatible multichannel analog-to-digital converter family. The device comparison table shows all twelve devices from this product family.
