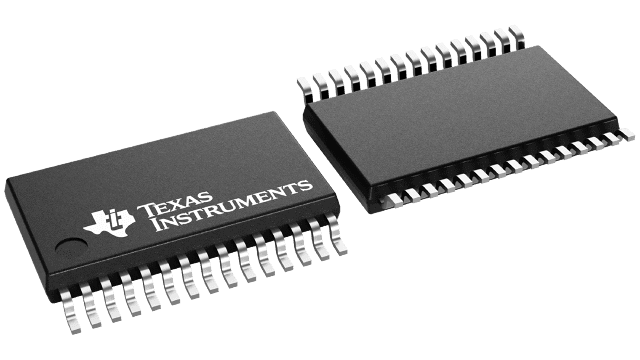

ADS7958SDBT Texas Instruments - Yeehing Electronics
8 bit, 1 MSPS, 4 Channel, Single-Ended, SAR ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.666 |
| 100 — 249 | 2.336 |
| 250 — 999 | 1.638 |
| 1,000 + | 0.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS7958 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-30 |
| Resolution | 8 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 1 MS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Digital Supply Voltage | 1.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 49 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tube |
| Features | Zero Latency, Two SW Selectable Unipolar |
| Height | 1.15 mm |
| Length | 7.8 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 11.5 mW |
| Type | Precision ADC |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| DNL - Differential Nonlinearity | 0.3 LSB |
| FPBW - Full Power Bandwidth | 47 MHz |
| INL - Integral Nonlinearity | 0.3 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.25 V |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V |
| SFDR - Spurious Free Dynamic Range | - 78 dB |
| SINAD - Signal to Noise and Distortion Ratio | 49 dB |
| Factory Pack Quantity | 60 |
| Subcategory | Data Converter ICs |
| THD - Total Harmonic Distortion | - 75 dB |
| Unit Weight | 0.003439 oz |
For more information, please refer to datasheet
Documents
| ADS7958SDBT Datasheet |
More Information
The ADS79xx is a 12-, 10-, 8-bit pin compatible multichannel analog-to-digital converter family. The device comparison table shows all twelve devices from this product family.
