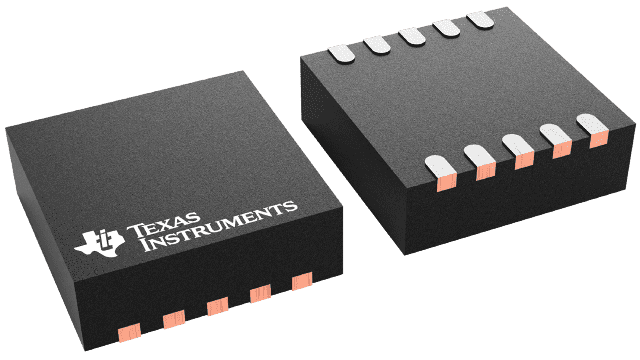

ADS8319IBDRCR Texas Instruments - Yeehing Electronics
Precision 16-Bit SAR Analog-to-Digital Converter (ADC) With SPI Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.023 |
| 100 — 249 | 10.502 |
| 250 — 999 | 8.098 |
| 1,000 + | 5.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8319 |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 500 kS/s |
| Input Type | Single-Ended |
| Interface Type | 3-Wire, SPI |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 2.375 V to 5.5 V |
| SNR - Signal to Noise Ratio | 93.9 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Small Size |
| Height | 0.9 mm |
| Length | 3 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 18 mW |
| Width | 3 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1.5 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Pd - Power Dissipation | 22.5 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 93.8 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001386 oz |
For more information, please refer to datasheet
Documents
| ADS8319IBDRCR Datasheet |
More Information
The ADS8319 device is a 16-bit, 500-kSPS, analog-to-digital converter (ADC) that operates with a 2.25-V to 5.5-V external reference. The device includes a capacitor-based, successive-approximation register (SAR) ADC with inherent sample and hold.
