ADS8322YB/250 Texas Instruments - Yeehing Electronics

Unipolar, 16-Bit, 500kSPS CMOS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	18.78
100 — 249	16.404
250 — 999	12.648
1,000 +	7.92

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS8322YB/250 Datasheet

More Information

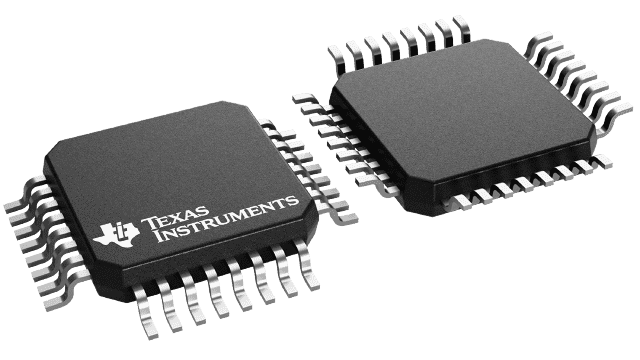

The ADS8322 is a 16-bit, 500kHz analog-to-digital (A/D) converter with an internal 2.5V reference. The device includes a 16-bit capacitor-based successive approximation register (SAR) A/D converter with inherent sample-and-hold. The ADS8322 offers a full 16-bit interface, or an 8-bit option where data are read using two read cycles and eight pins. The ADS8322 is available in a TQFP-32 package and is ensured over the industrial –40°C to +85°C temperature range.
