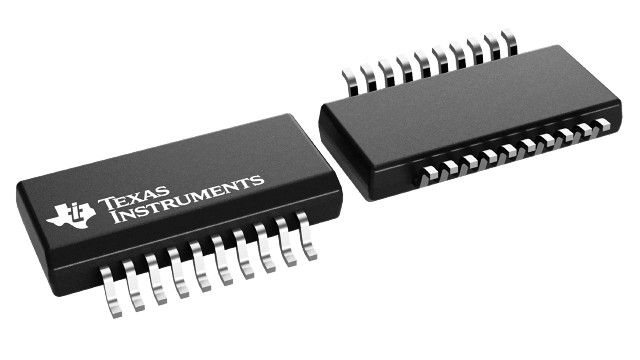

ADS8344EB/2K5 Texas Instruments - Yeehing Electronics

16-Bit, 100-kSPS, 8-Ch SAR ADC with single-ended inputs

Pricing (USD)

Quantity	Unit Price
1 — 99	16.069
100 — 249	14.036
250 — 999	10.822
1,000 +	6.78

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS8344EB/2K5 Datasheet

More Information

The ADS8344 is an 8-channel, 16-bit, sampling Analog-to-Digital (A/D) converter with a synchronous serial interface. Typical power dissipation is 10mW at a 100kHz throughput rate and a +5V supply. The reference voltage (VREF) can be varied between 500mV and VCC , providing a corresponding input voltage range of 0V to VREF . The device includes a shutdown mode that reduces power dissipation to under 15µW. The ADS8344 is tested down to 2.7V operation.
