Texas Instruments
ADS8361IDBQR
ADS8361IDBQR
Regular price
$7.04 USD
Regular price
Sale price
$7.04 USD
Unit price
per
Couldn't load pickup availability

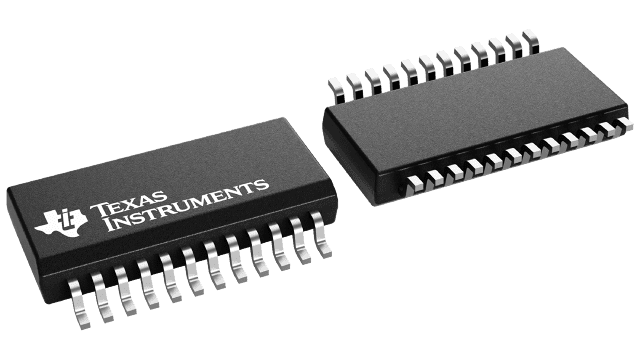

ADS8361IDBQR Texas Instruments - Yeehing Electronics
16-Bit 500 kSPS 2 ADCs, 4ch, serial out
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.608 |
| 100 — 249 | 12.76 |
| 250 — 999 | 9.838 |
| 1,000 + | 7.04 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8361 |
| Mounting Style | SMD/SMT |
| Package / Case | QSOP-24 |
| Resolution | 16 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 500 kS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 83 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Internal Reference, Simultaneous Sampling |
| Height | 1.5 mm |
| Length | 8.75 mm |
| Number of Converters | 2 Converter |
| Power Consumption | 150 mW |
| Width | 4 mm |
| Brand | Texas Instruments |
| Development Kit | ADS8361EVM |
| DNL - Differential Nonlinearity | 1.5 LSB |
| INL - Integral Nonlinearity | +/- 8 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 200 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 83 dB |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| ADS8361IDBQR Datasheet |
More Information
The ADS8361 is a dual, 16-bit, 500kSPS, Analog-to-Digital (A/D) converter with four fully differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold amplifiers are fully differential and are maintained differentially to the input of the A/D converter. This provides excellent common-mode rejection of 80dB at 50kHz, which is important in high-noise environments.
