Texas Instruments

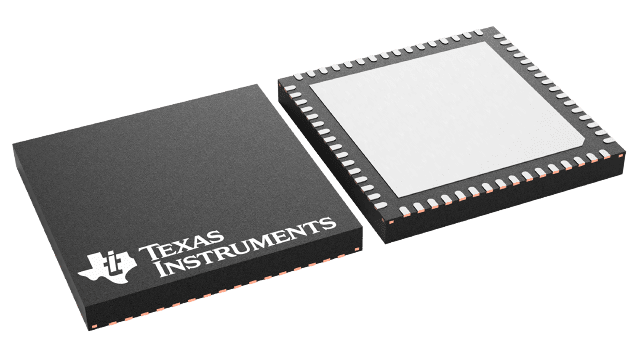

ADS8548SRGCT
ADS8548SRGCT
Regular price
$8.32 USD
Regular price
Sale price
$8.32 USD
Unit price
per
Couldn't load pickup availability
ADS8548SRGCT Texas Instruments - Yeehing Electronics
14-Bit 8-Channel Simultaneous-Sampling Bipolar-Input ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 19.721 |
| 100 — 249 | 17.226 |
| 250 — 999 | 13.282 |
| 1,000 + | 8.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8548 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-64 |
| Resolution | 14 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 600 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel, SPI |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 85 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Oscillator |
| Number of Converters | 8 Converter |
| Output Type | CMOS |
| Power Consumption | 335 mW |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Pd - Power Dissipation | 419.1 W |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V, 3 V |
| SINAD - Signal to Noise and Distortion Ratio | 84 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
| ADS8548SRGCT Datasheet |
More Information
The ADS85x8 contain eight low-power, 12-, 14-, or 16-bit, successive approximation register (SAR)-based analog-to-digital converters (ADCs) with true bipolar inputs. These channels are grouped in four pairs, thus allowing simultaneous high-speed signal acquisition of up to 650 kSPS.
