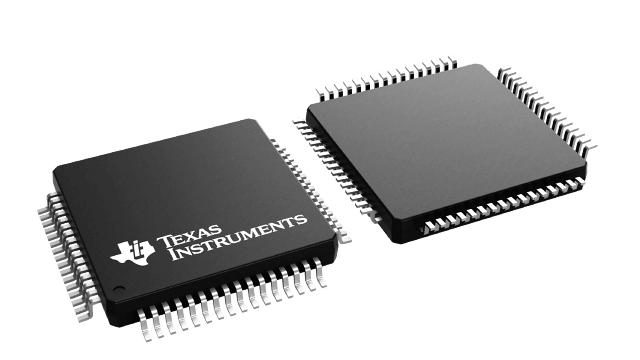

ADS8556IPM Texas Instruments - Yeehing Electronics
630kSPS 6-Channel Simultaneous-Sampling ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 19.968 |
| 100 — 249 | 17.442 |
| 250 — 999 | 13.448 |
| 1,000 + | 8.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8556 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Resolution | 16 bit |
| Number of Channels | 6 Channel |
| Sampling Rate | 630 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel, Serial |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 91.5 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Features | Daisy-Chainable, Oscillator |
| Height | 1.4 mm |
| Length | 10 mm |
| Number of Converters | 6 Converter |
| Power Consumption | 335 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| Development Kit | ADS8556EVM |
| DNL - Differential Nonlinearity | - 1 /2 LSB |
| INL - Integral Nonlinearity | +/- 4 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Pd - Power Dissipation | 251.7 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V |
| SINAD - Signal to Noise and Distortion Ratio | 89.5 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012088 oz |
For more information, please refer to datasheet
Documents
| ADS8556IPM Datasheet |
More Information
The ADS855x contains six low-power, 16-, 14-, or 12-bit, successive approximation register (SAR) based analog-to-digital converters (ADCs) with true bipolar inputs. Each channel contains a sample-and-hold circuit that allows simultaneous high-speed multi-channel signal acquisition.
