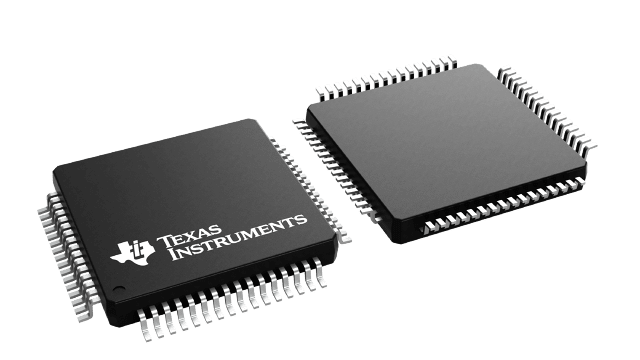

ADS8598SIPM Texas Instruments - Yeehing Electronics
18-Bit 200kSPS 8-Channel Simultaneous-Sampling ADC With Bipolar Inputs on a Single Supply
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 28.227 |
| 100 — 249 | 24.656 |
| 250 — 999 | 19.01 |
| 1,000 + | 11.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8598S |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-64 |
| Resolution | 18 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 200 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel, Serial |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.3 V to 5.25 V |
| SNR - Signal to Noise Ratio | 94 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Features | Oscillator, Over-Voltage Protection, PGA |
| Number of Converters | 4 Converter |
| Power Consumption | 88.5 mW |
| Type | Simultaneous-Sampling ADC |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| DNL - Differential Nonlinearity | 0.5 LSB |
| Gain Error | 10 LSB |
| INL - Integral Nonlinearity | 2 LSB |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V |
| SFDR - Spurious Free Dynamic Range | 109 dB |
| SINAD - Signal to Noise and Distortion Ratio | 93.9 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| THD - Total Harmonic Distortion | - 109.2 dB |
| Unit Weight | 0.018103 oz |
For more information, please refer to datasheet
Documents
| ADS8598SIPM Datasheet |
More Information
The ADS8598S device is an 8-channel, integrated data acquisition (DAQ) system based on a 18-bit successive approximation (SAR) analog-to-digital converter (ADC). All input channels are simultaneously sampled to achieve a maximum throughput of 200 kSPS per channel. The device features a complete analog front-end (AFE) for each channel, including a programmable gain amplifier (PGA) with high input impedance of 1 MΩ, input clamp, low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADC. A flexible digital interface supporting serial, parallel, and parallel byte communication enables the device to be used with a variety of host controllers.
