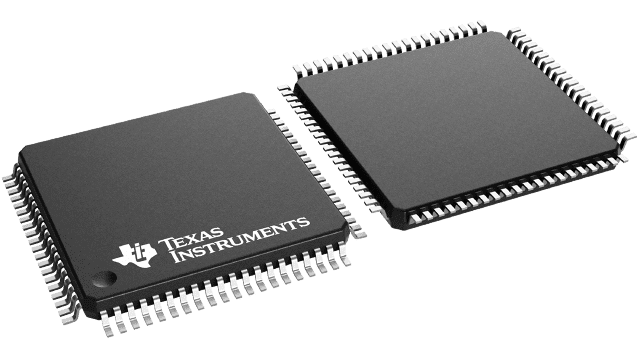

ADS8686SIPZAR Texas Instruments - Yeehing Electronics

16-channel 16-bit 1-MSPS dual simultaneous-sampling ADC with integrated analog front end (AFE)

Pricing (USD)

Quantity	Unit Price
1 — 99	17.563
100 — 249	15.341
250 — 999	11.828
1,000 +	7.41

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS8686SIPZAR Datasheet

More Information

The ADS8686S is a 16-channel data acquisition (DAQ) system based on a dual simultaneous-sampling, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC). The ADS8686S features a complete analog front-end for each channel with an input clamp, 1-MΩ input impedance, independently programmable gain amplifier (PGA), programmable low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADCs. A flexible digital interface supporting serial, parallel, and byte communication enables the device to be used with a variety of host controllers.
