Texas Instruments
ADS8860IDRCT
ADS8860IDRCT
Regular price
$6.47 USD
Regular price
Sale price
$6.47 USD
Unit price
per
Couldn't load pickup availability

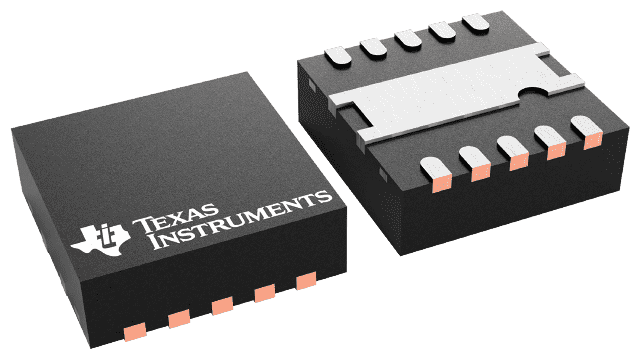

ADS8860IDRCT Texas Instruments - Yeehing Electronics
16-bit, 1-MSPS, 1-channel SAR ADC with single-ended input, SPI and daisy chain
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.338 |
| 100 — 249 | 13.398 |
| 250 — 999 | 10.33 |
| 1,000 + | 6.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8860 |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 1 MS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 3.6 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| SNR - Signal to Noise Ratio | 93 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Oscillator, Small Size |
| Number of Converters | 1 Converter |
| Power Consumption | 5.5 mW |
| Brand | Texas Instruments |
| Development Kit | ADS8860EVM-PDK |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 3.6 V |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 92.9 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001386 oz |
For more information, please refer to datasheet
Documents
| ADS8860IDRCT Datasheet |
More Information
The ADS8860 is a 16-bit, 1-MSPS, single-ended input, analog-to-digital converter (ADC). The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage (AVDD).
