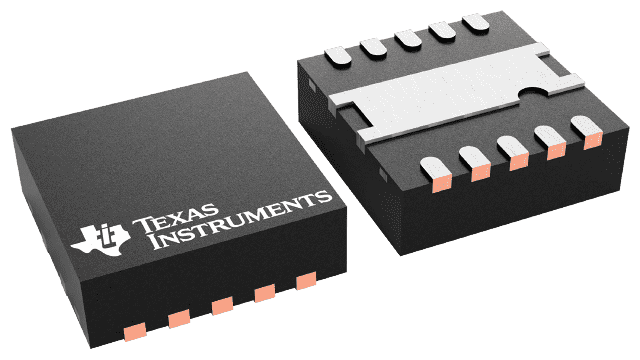

ADS8861IDRCR Texas Instruments - Yeehing Electronics

16-Bit, 1-MSPS, 1-Ch SAR ADC with True-Differential Input, SPI Interface and Daisy-Chain

Pricing (USD)

Quantity	Unit Price
1 — 99	13.878
100 — 249	12.122
250 — 999	9.346
1,000 +	5.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS8861
Mounting Style	SMD/SMT
Package / Case	VSON-10
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	1 MS/s
Input Type	Differential
Interface Type	SPI
Architecture	SAR
Reference Type	External
Analog Supply Voltage	2.7 V to 3.6 V
Digital Supply Voltage	1.65 V to 3.6 V
SNR - Signal to Noise Ratio	96 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Daisy-Chainable, Oscillator, Small Size
Power Consumption	5.5 mW
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 3.6 V
Product Type	ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio	96.4 dB
Factory Pack Quantity	3000
Subcategory	Data Converter ICs
Unit Weight	0.001386 oz

For more information, please refer to datasheet

Documents

ADS8861IDRCR Datasheet

More Information

The ADS8861 is a 16-bit, 1-MSPS, true-differential input, analog-to-digital converter (ADC). The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage (AVDD).
