Texas Instruments
ADS8866IDRCR
ADS8866IDRCR
Regular price
$1.35 USD
Regular price
Sale price
$1.35 USD
Unit price
per
Couldn't load pickup availability

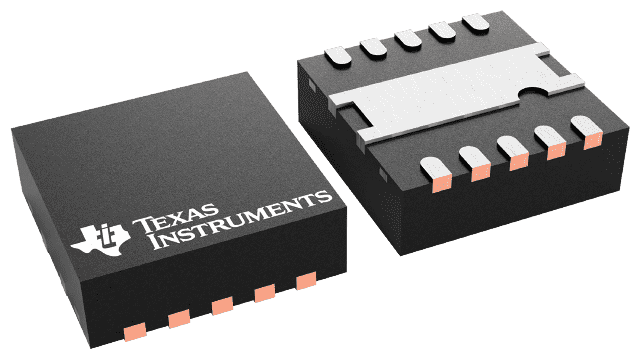

ADS8866IDRCR Texas Instruments - Yeehing Electronics
16-Bit, 100-kSPS, 1-Ch SAR ADC with Single-Ended Input, SPI Interface and Daisy-Chain
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.196 |
| 100 — 249 | 2.791 |
| 250 — 999 | 2.152 |
| 1,000 + | 1.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8866 |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 100 kS/s |
| Input Type | Single-Ended |
| Interface Type | Serial, SPI |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 3.6 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| SNR - Signal to Noise Ratio | 93 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Oscillator, Small Size |
| Power Consumption | 0.7 mW |
| Product | Analog to Digital Converters |
| Brand | Texas Instruments |
| Operating Supply Voltage | 2.7 V to 3.6 V |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 92.9 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001386 oz |
For more information, please refer to datasheet
Documents
| ADS8866IDRCR Datasheet |
More Information
The ADS8866 is a 16-bit, 100-kSPS, single-ended input, analog-to-digital converter (ADC). The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage (AVDD).
