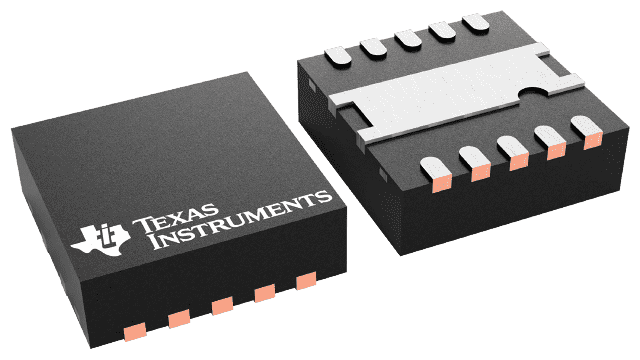

ADS8881CDRCR Texas Instruments - Yeehing Electronics
18-Bit, 1-MSPS, 1-Ch SAR ADC with True-Differential Input, SPI Interface and Daisy-Chain
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 20.899 |
| 100 — 249 | 18.256 |
| 250 — 999 | 14.076 |
| 1,000 + | 8.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8881 |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Analog Supply Voltage | 2.7 V to 3.6 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Daisy-Chainable, Oscillator, Small Size |
| Power Consumption | 5.5 mW |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 99.9 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS8881CDRCR Datasheet |
More Information
The ADS8881 is an 18-bit, 1-MSPS, true-differential input, analog-to-digital converter (ADC). The device operates with a 2.5-V to 5-V external reference, offering a wide selection of signal ranges without additional input signal scaling. The reference voltage setting is independent of, and can exceed, the analog supply voltage (AVDD).
