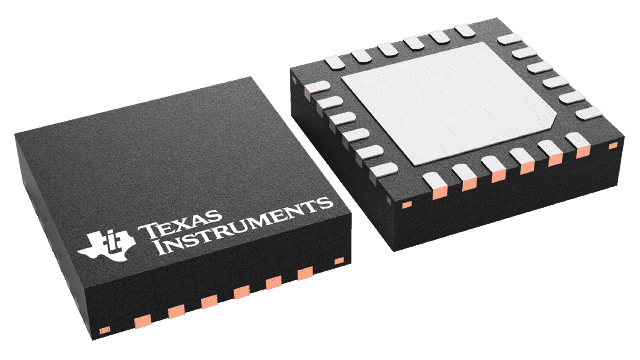

ADS8920BRGET Texas Instruments - Yeehing Electronics

16-bit, 1-MSPS, one-channel SAR ADC with internal VREF buffer, internal LDO and enhanced SPI

Pricing (USD)

Quantity	Unit Price
1 — 99	19.721
100 — 249	17.226
250 — 999	13.282
1,000 +	8.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS8920B
Mounting Style	SMD/SMT
Package / Case	VQFN-24
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	1 MS/s
Input Type	Differential
Interface Type	SPI
Architecture	SAR
Reference Type	External
Analog Supply Voltage	3 V to 5.5 V
Digital Supply Voltage	1.65 V to 5.5 V
SNR - Signal to Noise Ratio	95 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Daisy-Chainable, Oscillator
Number of Converters	1 Converter
Power Consumption	21 mW
Type	High Speed ADC
Brand	Texas Instruments
Shutdown	No Shutdown
DNL - Differential Nonlinearity	0.2 LSB
Gain Error	0.005 % FSR
INL - Integral Nonlinearity	0.3 LSB
Moisture Sensitive	Yes
Pd - Power Dissipation	21 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	2.5 V to 5 V
SFDR - Spurious Free Dynamic Range	125 dB
SINAD - Signal to Noise and Distortion Ratio	95.9 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
THD - Total Harmonic Distortion	- 110 dB
Tradename	multiSPI
Unit Weight	0.001566 oz

For more information, please refer to datasheet

Documents

ADS8920BRGET Datasheet

More Information

The ADS8920B, ADS8922B, and ADS8924B (ADS892xB) belong to a family of pin-to-pin compatible, high-speed, single-channel, high-precision, 16-bit successive approximation register (SAR) based analog-to-digital convertors (ADCs) with an integrated reference buffer and integrated low-dropout regulator (LDO). The device family includes the ADS890xB (20-bit) and ADS891xB (18-bit) resolution variants.
