AFE4400RHAR Texas Instruments - Yeehing Electronics

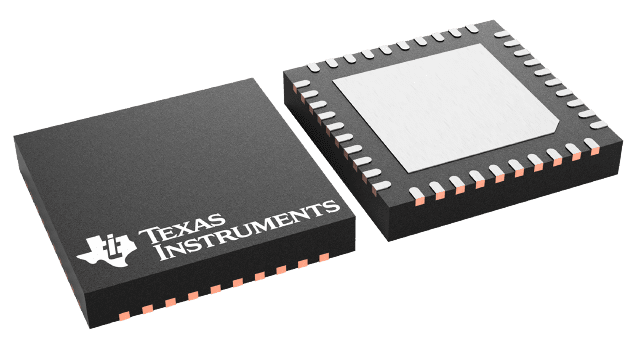

Integrated Analog Front End (AFE) for Heart-Rate Monitors and Low-Cost Pulse Oximeters
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.255 |
| 100 — 249 | 4.284 |
| 250 — 999 | 3.367 |
| 1,000 + | 2.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE4400 |
| Type | Heart Rate and Oximeter AFE |
| Resolution | 22 bit |
| Sampling Rate | 1.3 kS/s |
| Number of Channels | 1 Channel |
| Interface Type | Serial, SPI |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 2 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Features | Optical biosensing |
| Input Voltage | 3.3 V |
| Number of Converters | 1 |
| Brand | Texas Instruments |
| Analog Supply Voltage | 2 V to 3.6 V |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 2.84 mW |
| Product Type | Analog Front End - AFE |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| AFE4400RHAR Datasheet |
More Information
The AFE4400 is a fully-integrated analog front-end (AFE) ideally suited for pulse oximeter applications. The device consists of a low-noise receiver channel with an integrated analog-to-digital converter (ADC), an LED transmit section, and diagnostics for sensor and LED fault detection. The device is a very configurable timing controller. This flexibility enables the user to have complete control of the device timing characteristics. To ease clocking requirements and provide a low-jitter clock to the AFE4400, an oscillator is also integrated that functions from an external crystal. The device communicates to an external microcontroller or host processor using an SPI™ interface.
