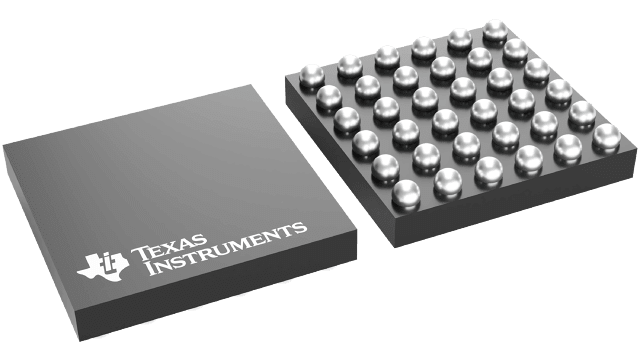

AFE4950YBGR Texas Instruments - Yeehing Electronics

Ultra-small integrated AFE for wearable optical heart-rate monitoring and SpO2

Pricing (USD)

Quantity	Unit Price
1 — 99	8.28
100 — 249	6.75
250 — 999	5.306
1,000 +	3.15

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

AFE4950YBGR Datasheet

More Information

The AFE4950 device is an analog front-end (AFE) for synchronized signal acquisition of PPG and ECG signals. The device can also be used for optical bio-sensing applications, such as heart-rate monitoring (HRM) and saturation of peripheral capillary oxygen (SpO2). The ECG signal chain supports 2- and 3-electrode configurations and has an integrated Right leg drive (RLD) buffer. The ECG signal chain can also be used to do a continuous, low-power monitoring of the impedance between pair of electrodes.
