Texas Instruments
AFE5803ZCF
AFE5803ZCF
Regular price
$35.27 USD
Regular price
Sale price
$35.27 USD
Unit price
per
Couldn't load pickup availability

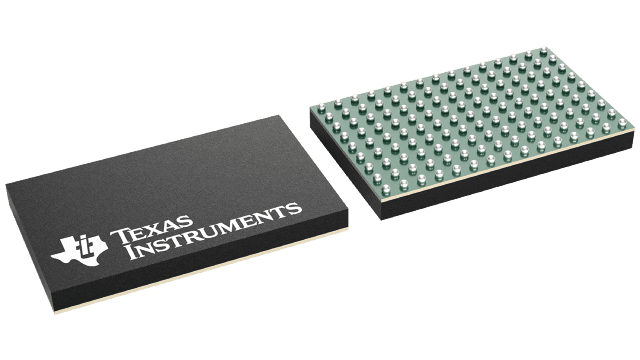

AFE5803ZCF Texas Instruments - Yeehing Electronics
Fully Integrated, 8-Channel Ultrasound Analog Front End
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 67.011 |
| 100 — 249 | 64.995 |
| 250 — 999 | 54.112 |
| 1,000 + | 35.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE5803 |
| Type | Ultrasound |
| Resolution | 12 bit, 14 bit |
| Number of Channels | 8 Channel |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-135 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Number of Converters | 8 |
| Brand | Texas Instruments |
| Development Kit | AFE5803EVM |
| Gain Error | 0.5 dB |
| Moisture Sensitive | Yes |
| Product Type | Analog Front End - AFE |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.015817 oz |
For more information, please refer to datasheet
Documents
| AFE5803ZCF Datasheet |
More Information
The AFE5803 is a highly integrated Analog Front-End (AFE) solution specifically designed for ultrasound systems in which high performance and small size are required. The AFE5803 integrates a complete time-gain-control (TGC) imaging path. It also enables users to select one of various power/noise combinations to optimize system performance. Therefore, the AFE5803 is a suitable ultrasound analog front end solution for portable systems.
