Texas Instruments
AFE5805ZCF
AFE5805ZCF
Regular price
$26.22 USD
Regular price
Sale price
$26.22 USD
Unit price
per
Couldn't load pickup availability

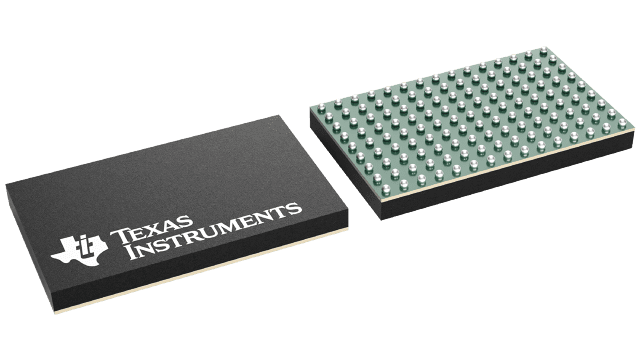

AFE5805ZCF Texas Instruments - Yeehing Electronics
8-channel low noise analog front end for ultrasound
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 57.317 |
| 100 — 249 | 50.948 |
| 250 — 999 | 41.883 |
| 1,000 + | 26.22 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE5805 |
| Type | Ultrasound |
| Resolution | 12 bit |
| Sampling Rate | 50 MS/s |
| Number of Channels | 8 Channel |
| Interface Type | Serial |
| Supply Voltage - Max | 1.9 V, 3.47 V, 5.25 V |
| Supply Voltage - Min | 1.7 V, 3.15 V, 4.75 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-135 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Height | 1.26 mm |
| Length | 9 mm |
| Number of Converters | 1 |
| Architecture | Pipeline |
| Brand | Texas Instruments |
| Development Kit | AFE5805EVM |
| Gain Error | +/-0.5 dB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V, 3.3 V, 5 V |
| Pd - Power Dissipation | 1080 mW |
| Product Type | Analog Front End - AFE |
| Reference Voltage | 2 V |
| SNR - Signal to Noise Ratio | 69.5 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012568 oz |
For more information, please refer to datasheet
Documents
| AFE5805ZCF Datasheet |
More Information
The AFE5805 is a complete analog front-end device specifically designed for ultrasound systems that require low power and small size.
