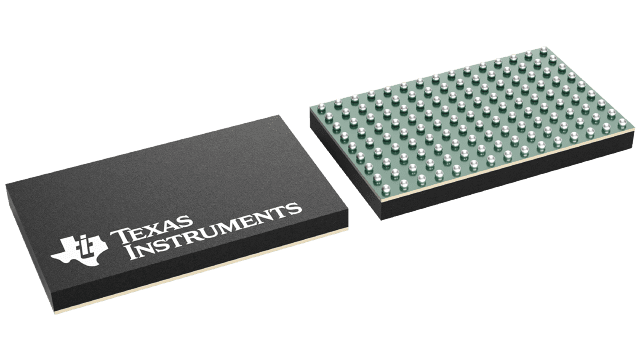

AFE5808AZCF Texas Instruments - Yeehing Electronics
Fully-Integrated, 8-Channel Ultrasound Analog Front End With Passive CW Mixer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 67.032 |
| 100 — 249 | 65.016 |
| 250 — 999 | 54.13 |
| 1,000 + | 35.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE5808A |
| Type | Ultrasound |
| Resolution | 12 bit, 14 bit |
| Sampling Rate | 65 MS/s |
| Number of Channels | 8 Channel |
| Interface Type | Serial, SPI |
| Supply Voltage - Max | 1.9 V |
| Supply Voltage - Min | 1.7 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-135 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Brand | Texas Instruments |
| Development Kit | AFE5808AEVM |
| Gain Error | +/-0.5 dB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | - 0.3 V to + 3.9 V |
| Pd - Power Dissipation | 190 mW |
| Product Type | Analog Front End - AFE |
| SNR - Signal to Noise Ratio | 77 dBFS |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Part # Aliases | HPA01093ZCF |
| Unit Weight | 0.015817 oz |
For more information, please refer to datasheet
Documents
| AFE5808AZCF Datasheet |
More Information
The AFE5808A is a highly-integrated, analog front-end (AFE) solution specifically designed for ultrasound systems in which high performance and small size are required. The AFE5808A integrates a complete time-gain-control (TGC) imaging path and a continuous wave Doppler (CWD) path. This device also enables users to select one of various power and noise combinations to optimize system performance. Therefore, the AFE5808A is an outstanding ultrasound analog front-end solution not only for high-end systems, but also for portable ones.
