Texas Instruments

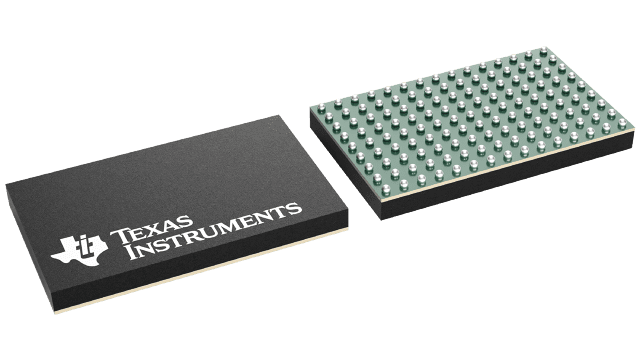

AFE5808ZCF
AFE5808ZCF
Regular price
$39.51 USD
Regular price
Sale price
$39.51 USD
Unit price
per
Couldn't load pickup availability
AFE5808ZCF Texas Instruments - Yeehing Electronics
8-channel low noise analog front end with passive CW mixer for ultrasound
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 75.076 |
| 100 — 249 | 72.818 |
| 250 — 999 | 60.625 |
| 1,000 + | 39.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE5808 |
| Type | Ultrasound |
| Resolution | 12 bit, 14 bit |
| Sampling Rate | 65 MS/s |
| Number of Channels | 8 Channel |
| Interface Type | Serial, SPI |
| Supply Voltage - Max | 1.9 V |
| Supply Voltage - Min | 1.7 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-135 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Brand | Texas Instruments |
| Development Kit | AFE5808EVM |
| Gain Error | +/-0.5 dB |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 175 mW |
| Product Type | Analog Front End - AFE |
| SNR - Signal to Noise Ratio | 77 dBFS |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.015820 oz |
For more information, please refer to datasheet
Documents
| AFE5808ZCF Datasheet |
More Information
The AFE5808 is a highly integrated analog front-end (AFE) solution specifically designed for ultrasound systems in which high performance and small size are required. The AFE5808 integrates a complete time-gain-control (TGC) imaging path and a continuous wave Doppler (CWD) path. It also enables users to select one of various power/noise combinations to optimize system performance. Therefore, the AFE5808 is a suitable ultrasound analog front end solution not only for high-end systems, but also for portable ones.
