Texas Instruments
AFE5809ZCF
AFE5809ZCF
Regular price
$51.53 USD
Regular price
Sale price
$51.53 USD
Unit price
per
Couldn't load pickup availability

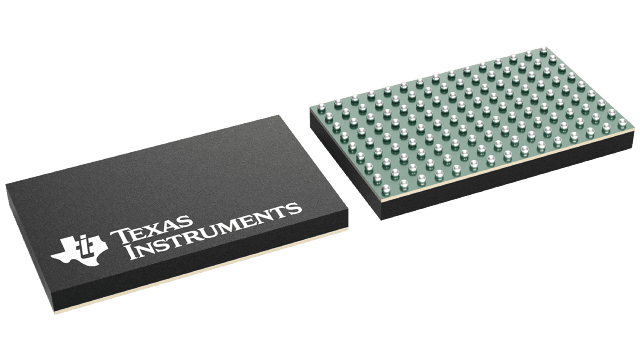

AFE5809ZCF Texas Instruments - Yeehing Electronics
Fully-Integrated, 8-Ch Ultrasound Analog Front End w/ Passive CW Mixer and Digital I/Q Demodulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 97.909 |
| 100 — 249 | 94.965 |
| 250 — 999 | 79.064 |
| 1,000 + | 51.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE5809 |
| Type | Ultrasound |
| Resolution | 12 bit, 14 bit |
| Number of Channels | 8 Channel |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | nFBGA-135 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Brand | Texas Instruments |
| Development Kit | AFE5809EVM |
| Gain Error | +/-0.5 dB |
| Moisture Sensitive | Yes |
| Product Type | Analog Front End - AFE |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.015820 oz |
For more information, please refer to datasheet
Documents
| AFE5809ZCF Datasheet |
More Information
The AFE5809 device is a highly-integrated analog front-end (AFE) solution specifically designed for ultrasound systems in which high performance and small size are required. The AFE5809 device integrates a complete time-gain-control (TGC) imaging path and a CWD path. The device also enables users to select one of various power and noise combinations to optimize system performance. Therefore, the AFE5809 device is a suitable ultrasound AFE solution not only for high-end systems, but also for portable ones.
