Texas Instruments
AFE58JD32ZBV
AFE58JD32ZBV
Regular price
$177.87 USD
Regular price
Sale price
$177.87 USD
Unit price
per
Couldn't load pickup availability

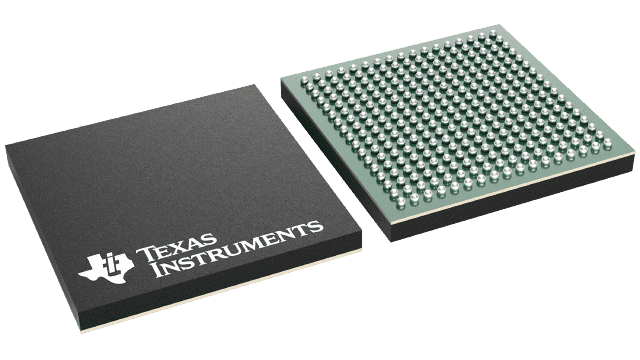

AFE58JD32ZBV Texas Instruments - Yeehing Electronics
32-channel ultrasound AFE with 42-mW/ch power, digital demodulator, and JESD204B and LVDS interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 294.756 |
| 100 — 249 | 266.805 |
| 250 — 999 | 259.182 |
| 1,000 + | 177.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | AFE58JD32 |
| Type | Ultrasound |
| Resolution | 10 bit, 12 bit |
| Sampling Rate | 40 MS/s, 50 MS/s |
| Number of Channels | 32 Channel |
| Interface Type | JESD |
| Supply Voltage - Max | 3.3 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-289 |
| Packaging | Tray |
| Features | Analog Front End (AFE) |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Analog Front End - AFE |
| Factory Pack Quantity | 126 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| AFE58JD32ZBV Datasheet |
More Information
The AFE58JD32 device is a highly-integrated, analog front-end solution specifically designed for ultrasound systems where high performance, low power, and small size are required.
