Texas Instruments
AFE7422IABJ
AFE7422IABJ
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability

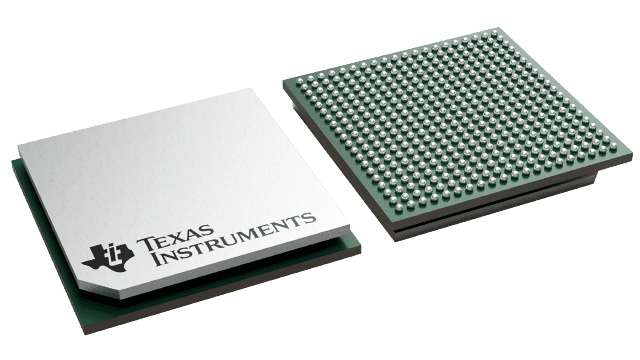

AFE7422IABJ Texas Instruments - Yeehing Electronics
Dual-channel RF-sampling AFE with 14-bit 9-GSPS DAC and 3-GSPS ADC with bypass mode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Front End |
| RoHS | Y |
| Type | RF Front End |
| Operating Frequency | 10 MHz to 6 GHz |
| Maximum Operating Temperature | + 85 C |
| Maximum Data Rate | 15 Gb/s |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-400 |
| Packaging | Tray |
| Bandwidth | 1500 MHz |
| Features | High Performance |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | AFE7422 |
| Brand | Texas Instruments |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | RF Front End |
| Factory Pack Quantity | 90 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| AFE7422IABJ Datasheet |
More Information
The AFE7422 is a dual-channel, wideband, RF-sampling analog front end (AFE) based on 14-bit, 9-GSPS DACs and 14-bit, 3-GSPS ADCs. With operation at an RF of up to 6 GHz, this device enables direct RF sampling into the C-band frequency range without the need for additional frequency conversions stages. This improvement in density and flexibility enables high-channel-count, multimission systems.
