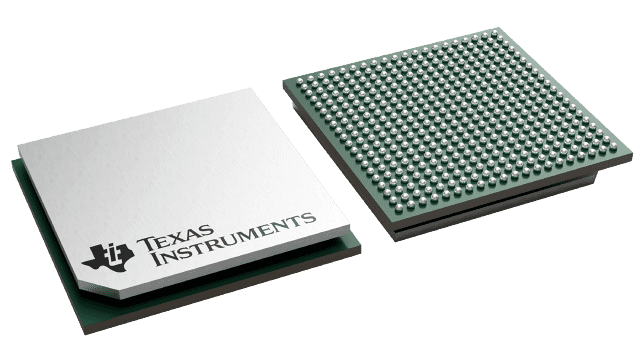

AFE7684IABJ Texas Instruments - Yeehing Electronics

2TX/4RX multiband RF-sampling transceiver with 14-bit 9-GSPS DAC and 3-GSPS ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Front End
RoHS	Y
Type	RF Front End
Operating Frequency	5.2 GHz
Operating Supply Voltage	- 1.8 V, 1 V, 1.15 V, 1.85 V
Maximum Operating Temperature	+ 85 C
Maximum Data Rate	1500 MS/s
Mounting Style	SMD/SMT
Package / Case	FCBGA-400
Packaging	Tray
Operating Temperature Range	- 40 C to + 85 C
Series	AFE7684
Brand	Texas Instruments
Minimum Operating Temperature	- 40 C
Moisture Sensitive	Yes
Product Type	RF Front End
Factory Pack Quantity	90
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

AFE7684IABJ Datasheet

More Information

The AFE76xx is a family of high performance, quad/dual channel, 14-bit, integrated RF sampling analog front ends (AFEs) with 9 GSPS DACs and 3 GSPS ADCs, capable of synthesizing and digitizing wideband signals. High dynamic range allows the AFE76xx to generate and digitize 3G/4G signals for wireless base stations. In TDD mode, the receiver channel can be configured to dynamically switching between traffic receiver (TDD RX) status and wideband feedback receiver (TDD FB) status to assist DPD (Digital Pre-Distortion) of the Power Amplifier (PA) on the transmitter path.
