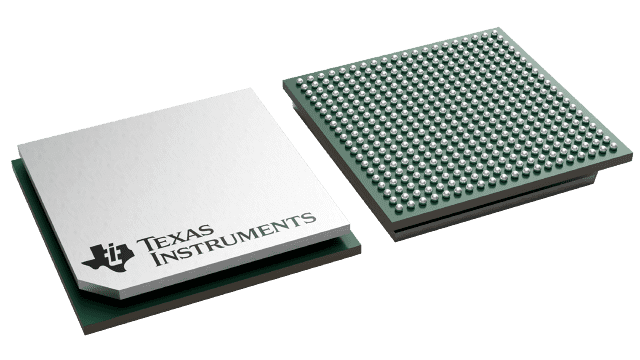

AFE7686IABJ


YeeHing #: Y013-AFE7686IABJ
Inventory: 8800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

AFE7686IABJ Texas Instruments - Yeehing Electronics

Four-transmit four-receive multiband RF-sampling transceiver with 14-bit 9-GSPS DAC and 3-GSPS ADC

Pricing (USD)

Quantity Unit Price
1 — 99 None
100 — 249 None
250 — 999 None
1,000 + None

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category RF Front End
RoHS Y
Type RF Front End
Operating Frequency 5.2 GHz
Operating Supply Voltage - 1.8 V, 1 V, 1.15 V, 1.85 V
Maximum Operating Temperature + 85 C
Maximum Data Rate 1500 MS/s
Mounting Style SMD/SMT
Package / Case FCBGA-400
Packaging Tray
Operating Temperature Range - 40 C to + 85 C
Series AFE7686
Brand Texas Instruments
Minimum Operating Temperature - 40 C
Moisture Sensitive Yes
Product Type RF Front End
Factory Pack Quantity 90
Subcategory Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

AFE7686IABJ Datasheet

More Information

The AFE76xx is a family of high performance, quad/dual channel, 14-bit, integrated RF sampling analog front ends (AFEs) with 9 GSPS DACs and 3 GSPS ADCs, capable of synthesizing and digitizing wideband signals. High dynamic range allows the AFE76xx to generate and digitize 3G/4G signals for wireless base stations. In TDD mode, the receiver channel can be configured to dynamically switching between traffic receiver (TDD RX) status and wideband feedback receiver (TDD FB) status to assist DPD (Digital Pre-Distortion) of the Power Amplifier (PA) on the transmitter path.
