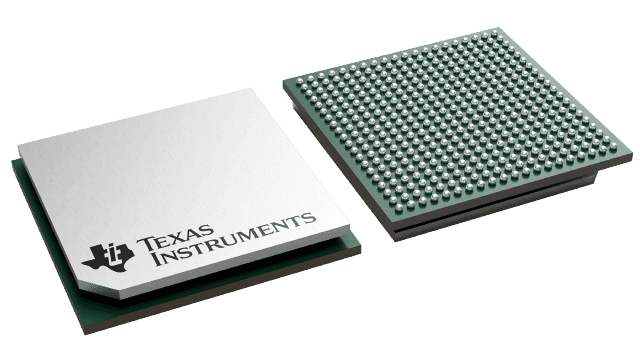

AFE7799IABJ Texas Instruments - Yeehing Electronics
Quad-channel RF transceiver with dual feedback paths
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 729.928 |
100 — 249 | 660.71 |
250 — 999 | 641.833 |
1,000 + | 440.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | RF Transceiver |
RoHS | Y |
Type | Multiband |
Frequency Range | 600 MHz to 6 GHz |
Maximum Data Rate | 29.5 Gb/s |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Package / Case | FCBGA-400 |
Packaging | Tray |
Series | AFE7799 |
Brand | Texas Instruments |
Mounting Style | SMD/SMT |
Moisture Sensitive | Yes |
Number of Receivers | 4 Receiver |
Number of Transmitters | 4 Transmitter |
Product Type | RF Transceiver |
Factory Pack Quantity | 90 |
Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
AFE7799IABJ Datasheet |
More Information
The AFE7799 is a high-performance, multichannel transceiver, integrating four direct up-conversion transmitter chains, four direct down-conversion receiver chains, and two wideband RF sampling digitizing auxiliary chains (feedback paths). The high dynamic range of the transmitter and receiver chains allows generating and receiving 2G, 3G, 4G, and 5G signals for wireless base stations. The low power dissipation and large channels integration makes the AFE7799 suitable to address the power and size constrained 4G and 5G massive MIMO base stations. The wideband and high dynamic range feedback path can assist the digital pre-distortion (DPD) of the power amplifiers in the transmitter chain. The fast SerDes speed can help reducing the number of lanes required to transfer the data in and out.
