Texas Instruments

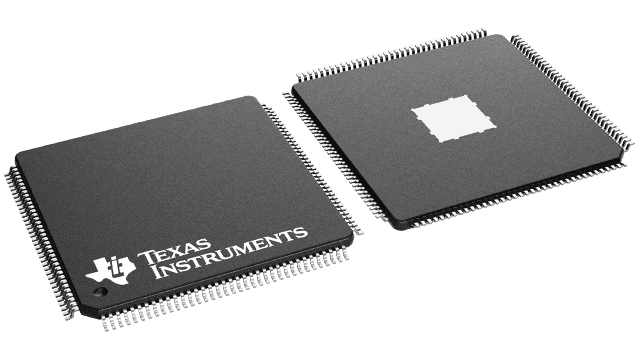

AFE8221IRFPQ1
AFE8221IRFPQ1
Regular price
$29.28 USD
Regular price
Sale price
$29.28 USD
Unit price
per
Couldn't load pickup availability
AFE8221IRFPQ1 Texas Instruments - Yeehing Electronics
Automotive Catalog Dual IF Interface for Digital Radio
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 64.001 |
| 100 — 249 | 56.89 |
| 250 — 999 | 46.767 |
| 1,000 + | 29.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Front End |
| RoHS | Y |
| Type | AM, FM |
| Operating Supply Voltage | 1.6 V to 3.6 V, 3.14 V to 3.6 V |
| Operating Supply Current | 65 mA, 130 mA |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-144 |
| Qualification | AEC-Q100 |
| Packaging | Tray |
| Bandwidth | 100 MHz |
| Height | 1 mm |
| Length | 20 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | AFE8221-Q1 |
| Width | 20 mm |
| Brand | Texas Instruments |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | RF Front End |
| Factory Pack Quantity | 60 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.036290 oz |
For more information, please refer to datasheet
Documents
| AFE8221IRFPQ1 Datasheet |
More Information
The AFE8221 implements the intermediate frequency (IF) sampling and processing functions of a digital radio receiver system. It is designed to be used with TIs digital radio baseband processors and AM/FM tuners. The AFE8221 can also be programmed by the baseband processor for use in conventional AM/FM and digital radio. This unit includes two IF inputs with associated filtering and digital processing circuitry.
